Description

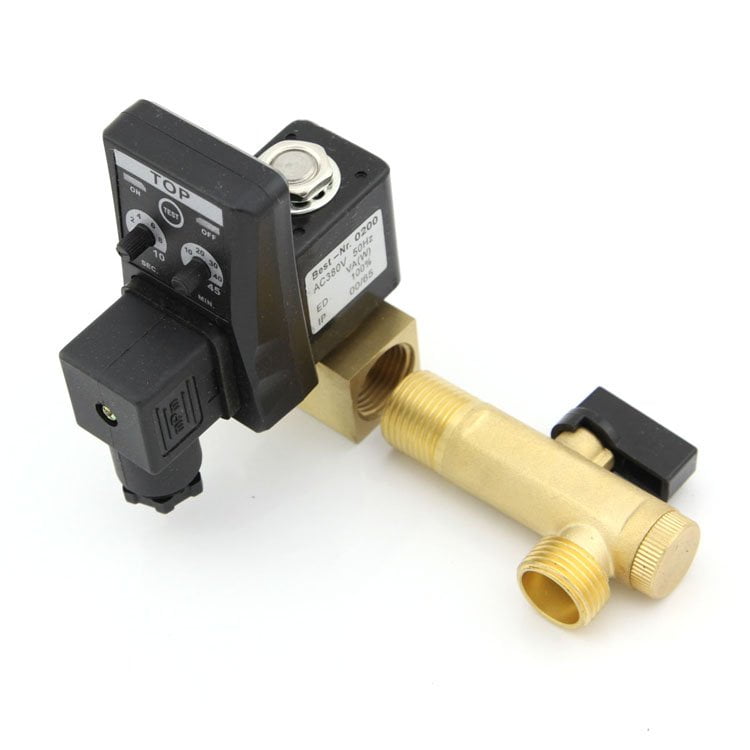

This high quality product is the most reliable way to remove water / oil condensate from a compressed air system.Timer Details
Supply Voltage240V AC +/- 10% 50/60
Indicators1 LED Yellow to indicate the ON phase
Indicators1 LED Yellow to indicate the OFF phase
Pause Time T20.5-45 Minutes
Work Time T10.5-10 Seconds
Current Consumption4mA maximum
Environmental ProtectionIP65
Case MaterialABS Plastic FR Grade
Connection43650 ISO4400/6952Drain Details
Inlet / Outlet ports3/8" bsp
Maximim Working Pressure16 bar g
MaterialBrass
Type2/2 way direct acting valve
